Ventless Oil Smoke Purification Integrated System 317PDXH90/120/160/200
EMEET Internal Circulation Oil Fume Purifier
The EMEET Internal Circulation Oil Fume Purifier is a state-of-the-art solution that integrates both oil fume purification and air filtration into one compact system. Built upon EMEET’s cutting-edge, patented technologies, this unit delivers exceptional purification performance and energy efficiency.
Featuring EMEET’s advanced Double-Arc Electronic Purifier (Double-Arc Electric Field), the system achieves ionization efficiency 8 to 10 times greater than standard parallel wire-plate electric fields used in the industry. In addition, the Series-Variable Flue System ensures highly efficient grease removal while significantly enhancing the range hood’s suction capacity and deodorization effect.
The 317PDXH series offers two flexible operation modes:
- Ventless Internal Circulation Mode– requires no external ducting, ideal for installation in enclosed or restricted environments.
- Low-Altitude Environmental Exhaust Mode– allows optional connection to an exhaust pipe to meet stricter environmental regulations.
This system is perfectly suited for environmentally sensitive locations, including shopping malls, office buildings, residential complexes, and tourist areas, where conventional smoke exhaust systems may not be feasible.
1. Adopt an air purifier-grade double-arc electronic purifier (double-arc electric field), which can efficiently filter fine particles.
2. The intelligent automatic cleaning system eliminates the trouble of frequent cleaning of the high-voltage electric field inside the equipment, saving you worry and money.
3. The centrifugal oil-slinging disk can efficiently filter oil and water vapor, and it also has a fire-retardant function, enhancing the fire safety of the catering store.
4. The honeycomb oil filter can efficiently filter oil and water vapor.
5. The DC variable-frequency fan achieves high suction power, low noise, and low energy consumption.
6. The precision micro-hole deodorization box that meets EU standards can efficiently remove the smell of cooking fumes.
7. It supports one-key startup and stepless speed regulation, allowing you to adjust the suction power at will.
8. The high-brightness LED lighting has high brightness, a long service life, and is also energy-saving.
| Number of fans | 1/1/2/2 pieces |
| Input power | 700/800/1200/1500W |
| Power of LED spotlights | 10/20/25/30W |
| Purification volume of oil fume and air | 2000/2500/3000/4000 m³/h |
| Noise | ≤62dB |

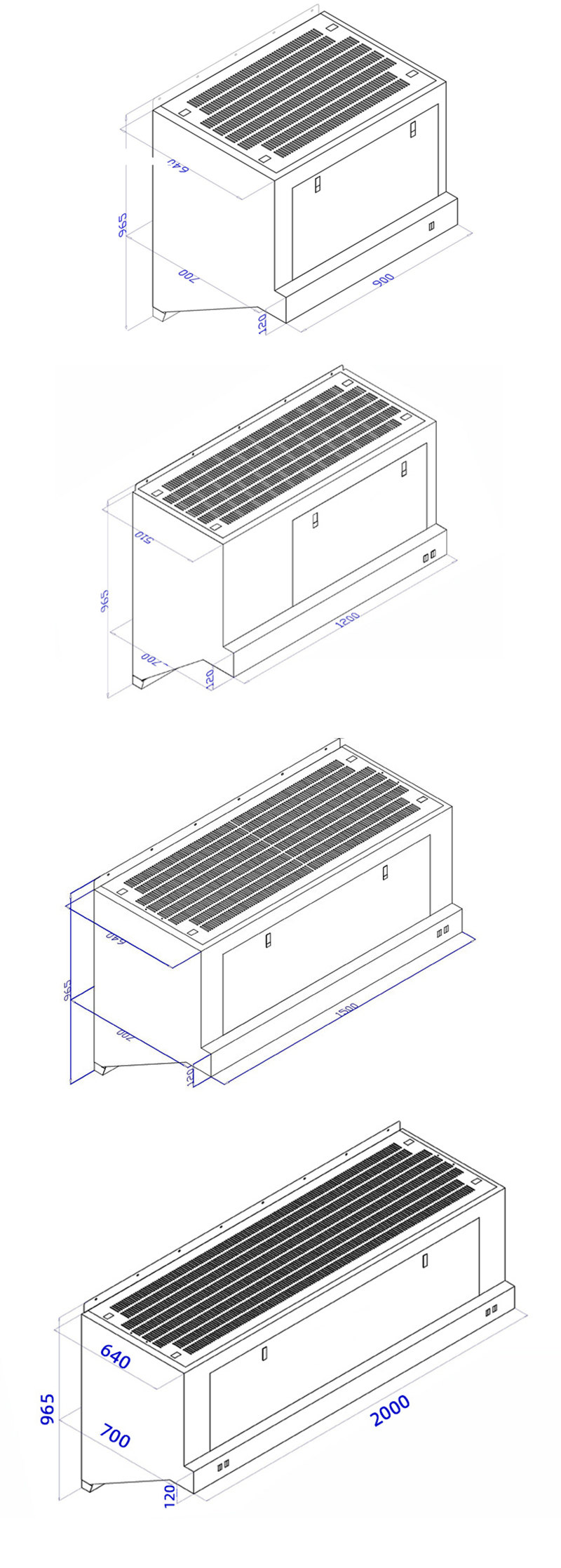

| External dimensions of the equipment (length * height) | (90/120/160/200) * 96 CM |
| Optional depth of the smoke hood | 750/100/120 CM |
| Applicable places | Cooking places with light oil fume |
| Installation method | Wall - mounted installation |
